An Introduction to Querying over Knowledge Graphs on the Web

Storing data as Knowledge Graphs

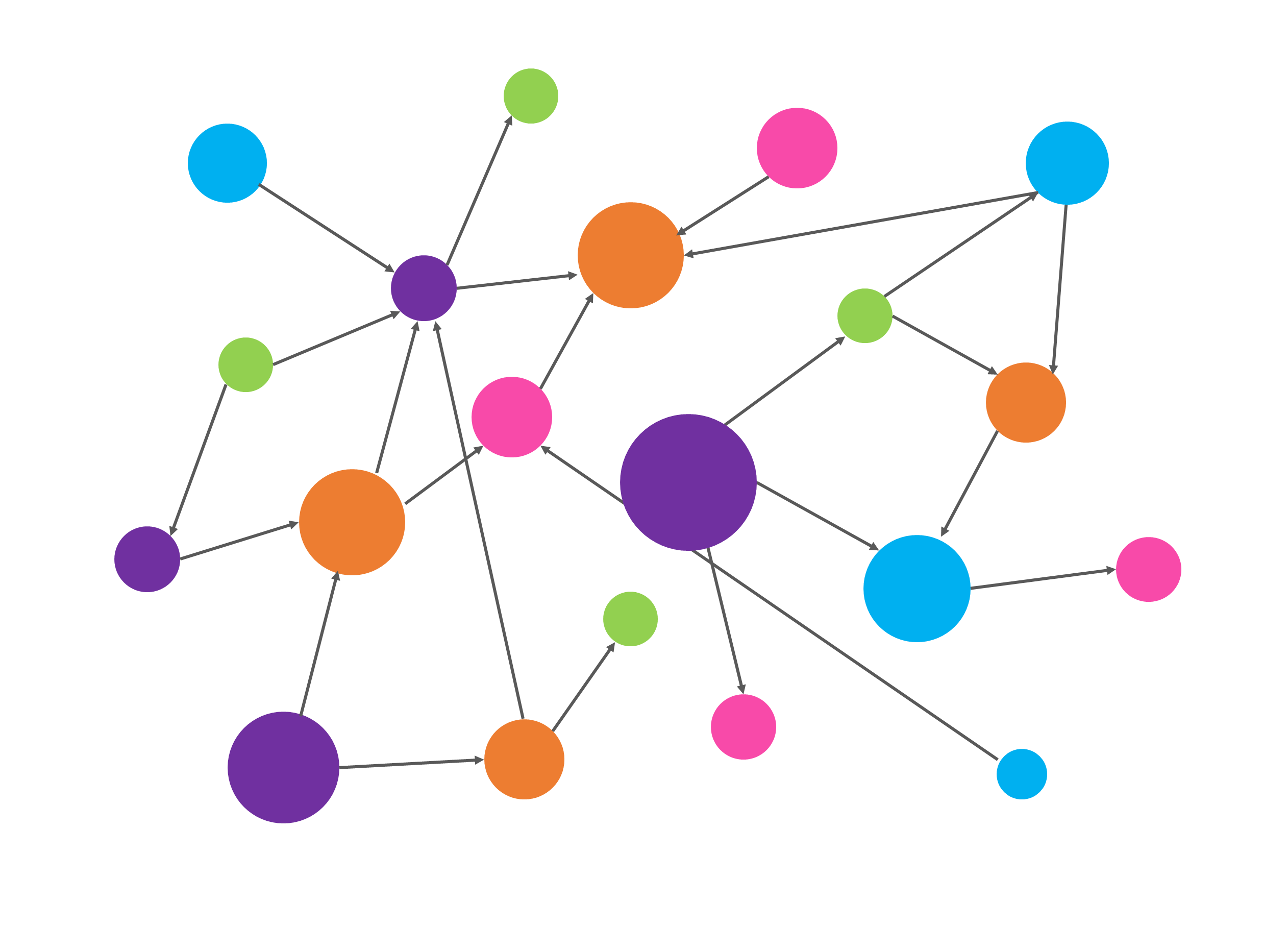

• Graph-based data model

• When data does not fit into a fixed relation model

• Based on Semantic Web and Linked Data technologies

• Interlinking data across multiple data sources

1989, CERN Switzerland

Tim Berners-Lee
inventor of the World Wide Web

The Web's foundational ideas

• Data is linked to each other

  Across heterogeneous systems (decentralized)

• Browser programs

  Visualises data and helps users navigating the Web

• Everyone can read data

  Using Web browsers

• Open standards

  Anyone can implement tools (browsers, ...) on top of it

1990-... World-wide adoption

Not just for researchers anymore

The Web is a global information space

a.k.a. The World Wide Web (WWW)

Mostly used by humans through Web browsers

Web is focused on humans

• Web pages show information

  Visualized using Web browsers

• Clicking on links

  To discover new information

• Search information

  Using search engines such as Google, Bing, ...

Achieving tasks requires manual effort

• Will it rain next week?

  1. Find a weather prediction website
  2. Select your location
  3. Navigate to next week

• Book a trip for a group of people

  • Comparing agendas
  • Comparing interests: nature, musea, ...
  • Regional temperatures
  • Geopolitical status
  • ...

What if intelligent agents
could do these tasks for us?

I Have a Dream

A Web where intelligent
agents are able to achieve
our day-to-day tasks.
2001

The Semantic Web will bring structure to the meaningful content of Web pages, creating an environment where software agents roaming from page to page can readily carry out sophisticated tasks for users.

The dream: Getting there step by step

2015: Agents are being introduced that can perform simple tasks

Google Assistant, Alexa, Siri, ...

How do these agents work?

→ Execute Queries over Knowledge Graphs

Query = Structured Question
Knowledge Graph = Structured information

→ Structured questions over structured information

A Knowledge Graph is
a collection of structured information

Semantic Web technologies

• RDF

  Standard for representing and exchanging graph data
  Knowledge Graphs are collections of such graph data

• SPARQL

  Standard for querying over RDF data

Generative AI models

2022: LLMs offer human-like conversations based on crawled Web data

Differences to Knowledge Graphs:

• Adaptive understanding of unstructured data
• Inconsistent answers and hallucinations
• Black box

RDF enables data exchange on the Web

• RDF

  Resource Description framework

• RDF 1.0

  Recommended by W3C since 1999

• RDF 1.1

  Recommended by W3C since 2014

• RDF 1.2

  Upcoming in 2025

Facts are represented as RDF triples

Multiple RDF triples form RDF datasets

:Alice :knows :Bob .
:Alice :knows :Carol .
:Alice :name "Alice" .
:Bob :name "Bob" .
:Bob :knows :Carol .

Multiple RDF triples form RDF datasets

RDF Resources are identified by IRIs

• IRI

  Internationalized Resource Identifier

• Global identifiers

  Can be used by different data sources → interlinking!

• IRIs can be URLs

  A URL is an IRI that can be dereferenced (e.g. looked up in Web browsers).
  Allows additional information to be looked up for a resource.

Multiple syntaxes exist for RDF

Turtle

PREFIX dbr: <http://dbpedia.org/resource/>
PREFIX foaf: <http://xmlns.com/foaf/0.1/>

dbr:Alice foaf:knows dbr:Bob .
dbr:Alice foaf:name "Alice" .

JSON-LD

{
    "@context": {
        "dbr": "http://dbpedia.org/resource/",
        "foaf": "http://xmlns.com/foaf/0.1/"
    },
    "@id": "dbr:Alice",
    "foaf:knows": "dbr:Bob",
    "foaf:name": "Alice"
}

SPARQL querying over RDF datasets

• SPARQL: language to read and update RDF datasets via declarative queries.
• Different query forms:


  • SELECT: selecting values in tabular form → focus of this presentation
  • CONSTRUCT: construct new triples
  • ASK: check if data exists
  • DESCRIBE: describe a given resource
  • INSERT: insert new triples
  • DELETE: delete existing triples

Specification: https://www.w3.org/TR/sparql-query/

Find all artists born in York

• SELECT ?name ?deathDate WHERE {
    ?person a dbpedia-owl:Artist;
            rdfs:label ?name;
            dbpedia-owl:birthPlace [ rdfs:label "York"@en ].
    FILTER LANGMATCHES(LANG(?name),  "EN")
    OPTIONAL { ?person dbpprop:dateOfDeath ?deathDate. }
  }


How do query engines process a query?

RDF dataset + SPARQL query
↓
...
↓
query results

How do query engines process a query?

RDF dataset + SPARQL query
↓
SPARQL query processing
↓
query results

Basic Graph Patterns enable graph pattern matching

• Basic Graph Pattern (BGP)

  A collection of triple patterns.

•     ?person a dbpedia-owl:Artist.
      ?person rdfs:label ?name.
      ?person dbpedia-owl:birthPlace ?birthPlace.


• Triple Pattern

  A triple in which any component may be a variable.
  Variables start with ?, followed by a label. (e.g. ?name)

• More complex operators are possible

  OPTIONAL, UNION, FILTER, ...

Steps in SPARQL query processing

• 1. Parsing

  Transform a SPARQL query string into an algebra expression

• 2. Optimization

  Transform algebra expression into a query plan

• 3. Evaluation

  Executes query plan to obtain query results

Publishing Knowledge Graphs as SPARQL Endpoints

SPARQL endpoint: API that accepts SPARQL queries, and replies with results.

• Most popular way to publish Knowledge Graphs

  Alternatives are data dumps and Linked Data Documents

• Very powerful

  Very complex queries can be formulated with SPARQL

• Power comes with a cost

  SPARQL endpoints can require very powerful servers

SPARQL processing over centralized data

• Dataset is collocated with query engine

  All data is known beforehand

• Single dataset

  Combining multiple datasets is hard

Centralization not always possible

• Private data

  Technical and legal reasons

• Evolving data

  Requires continuous re-indexing

• Web scale data

  Indexing the whole Web is infeasible (for non-tech-giants)

How to query over decentralized data?

• Data and query engine are not collocated

  Query engine runs on a separate machine

• Not just one datasets

  Data is spread over the Web into multiple documents

Approaches for querying over decentralized data

• Federated Query Processing

  Distributing query execution across known sources

• Link Traversal Query Processing

  Local query execution over sources that are discovered by following links

Client distributes query over query APIs

• Clients do limited effort

  Split up the query, distribute it (source selection), and combine results

• Servers perform most of the effort

  They actually execute the queries, over potentially huge datasets

Federation over SPARQL endpoints

• Servers are SPARQL endpoints (most common)

  They accept any valid SPARQL query

• Client-side source selection

  Rewrite query in terms of SERVICE clauses

SELECT ?drug ?title WHERE {
  ?drug db:drugCategory dbc:micronutrient.
  ?drug db:casRegistryNumber ?id.
  ?keggDrug rdf:type kegg :Drug.
  ?keggDrug bio2rdf:xRef ?id.
  ?keggDrug purl:title ?title.
}

SELECT ?drug ?title WHERE {
  SERVICE <http://example.com/drb> {
    ?drug db:drugCategory dbc:micronutrient.
    ?drug db:casRegistryNumber ?id.
  }
  SERVICE <http://example.com/kegg> {
    ?keggDrug rdf:type kegg :Drug.
    ?keggDrug bio2rdf:xRef ?id.
    ?keggDrug purl:title ?title.
  }
}

Federation over heterogeneous sources

• Servers are not only SPARQL endpoints

  Other types of Linked Data Fragments: TPF, WiseKG, brTPF, ...
  Different levels of server expressivity

• Clients may have to take up more effort

  Executing parts of queries client-side

• Trade-off between server and client effort

  Low-cost publishing and preventing server availability issues

Limitations of federated querying

• All federation members must be known before execution starts

  Source selection distributes query across list of sources
  No discovery of new sources

• Limited scalability in terms of number of endpoints

  Current federation techniques scale to the order of 10 sources

Exploit interlinking of documents

• Linked Data documents are linked to each other

  Following the Linked Data principles

• Query engine can follow links

  Start from one document, and discover new documents on the fly

Link Traversal-based Query Processing

= Querying by following links between documents

Example: decentralized address book

Example: Find Alice's contact names

SELECT ?name WHERE {
    <https://alice.pods.org/profile#me>
        foaf:knows ?person.
    ?person foaf:name ?name.
}

Query process:

1. Start from Alice's address book
2. Follow links to profiles of Bob and Carol
3. Query over union of all profiles
4. Find query results: [ { "name": "Bob" }, { "name": "Carol" } ]

Decentralized querying has open problems

• Link Traversal is suitable for querying decentralized environments

  Copes with limitations of federated querying
  Relatively new research area → many open problems

• Main bottleneck is number of links

  Future research should focus on guidance towards query-relevant links

Notable SPARQL engines

• Amazon Neptune

  SPARQL endpoint as a service

• Apache Jena

  Open-source engine in Java

• QLever

  Open-source engine in C

• Comunica

  Open-source engine in TypeScript, which focus on decentralized querying

Popular SPARQL endpoints

• Uniprot: Protein sequences (210+ billion triples)

  https://sparql.uniprot.org/

• Wikidata: RDF representation of Wikipedia (16+ billion triples)

  https://query.wikidata.org/

Example Federated queries

Requires prior knowledge of sources.

• Find all proteins linked to arachidonate (CHEBI:32395)

  Joins Uniprot and Rhea

• Retrieve human enzymes that metabolize sphingolipids and are annotated in ChEMBL

  Joins Uniprot, Rhea, and ChEMBL

Example Link Traversal queries

Discover sources on the fly.

• Comunica Link Traversal

  Queries over real-world and synthetic environments

Conclusions

• Knowledge Graphs use (Semantic) Web technologies

  RDF, SPARQL, …

• Knowledge Graphs can be interlinked

  Thanks to RDF's global identifiers

• Federated Querying and Link Traversal

  Combining data across multiple Knowledge Graphs
  Complex queries can be slow
